Schütz industrial underfloor heating system –
for withstanding any load.

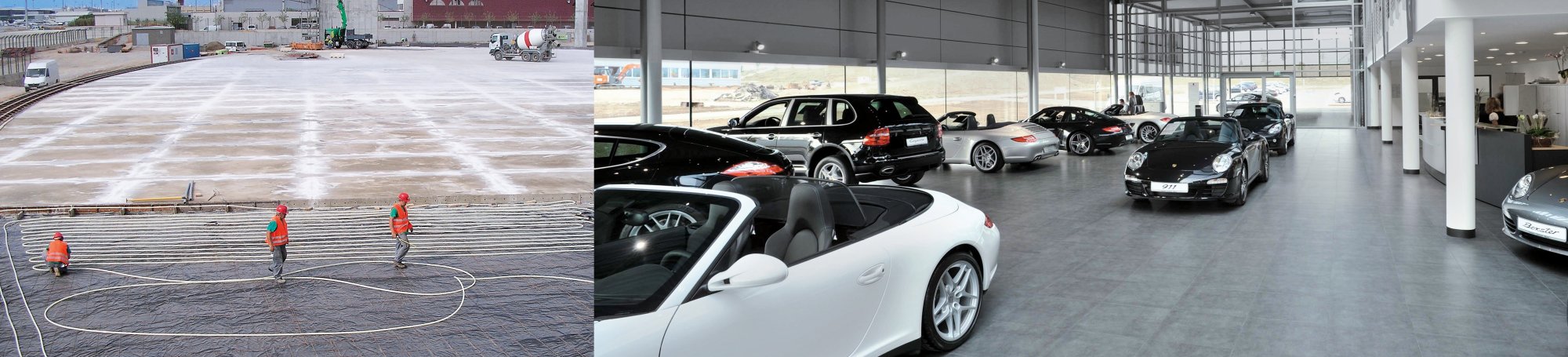

SCHÜTZ industrial underfloor heating is particularly suitable for heating and cooling expansive industrial buildings such as production facilities, warehouses and workshops or even large aircraft hangars. The underfloor heating is installed within the base plate, whereby the heating pipes are secured to the lower reinforcement steel mesh depending on the static specifications.

System features:

  • Industrial underfloor heating with heating pipes in the base plate without a separate screed layer
  • Pipe support mats available on request
  • Floor structure with lower and upper reinforcement in accordance with on-site realisation of industrial floors subject to high loads
Gesamtkatalog 2023

Entdecken Sie das Produktsortiment von SCHÜTZ.

Download PDF
SCHÜTZ Industrieflächenheizung

Kapitel 7

Download PDF

Industrial manifold

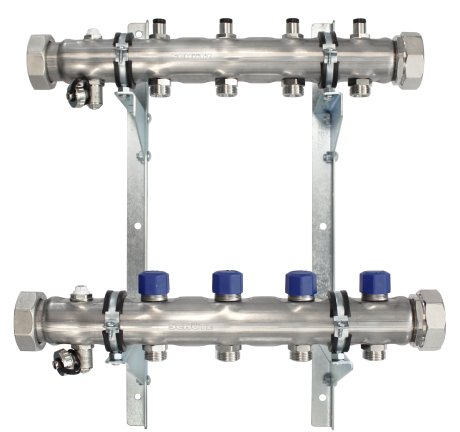

Stainless steel manifold DN 50 made of special profile with union nut G 2 flat sealing, complies with DIN EN 1264-4. Heating circuit connections G ¾ male thread with internal cone according to DIN EN 16313, suitable for compression fitting. Flow with regulating valves, return with thermostatic valve inserts and protective caps. Heating circuit spacing 80 mm, manual air vent G ½, fill and drain cock G ½. Up to 24 heating circuits can be combined.

Suitable for system heating pipes
20 x 2,0 mm | 25 x 2,3 mm

Product Variants

Heating circuitsLengthArticle numberadd to watchlist
2298 mm5007094
add to watchlist
3378 mm5007095
add to watchlist
4458 mm5007096
add to watchlist
5538 mm5007097
add to watchlist
6618 mm5007098
add to watchlist
7698 mm5007099
add to watchlist
8778 mm5007100
add to watchlist
9858 mm5007101
add to watchlist
10938 mm5007102
add to watchlist
111018 mm5007103
add to watchlist
121098 mm5007104
add to watchlist
