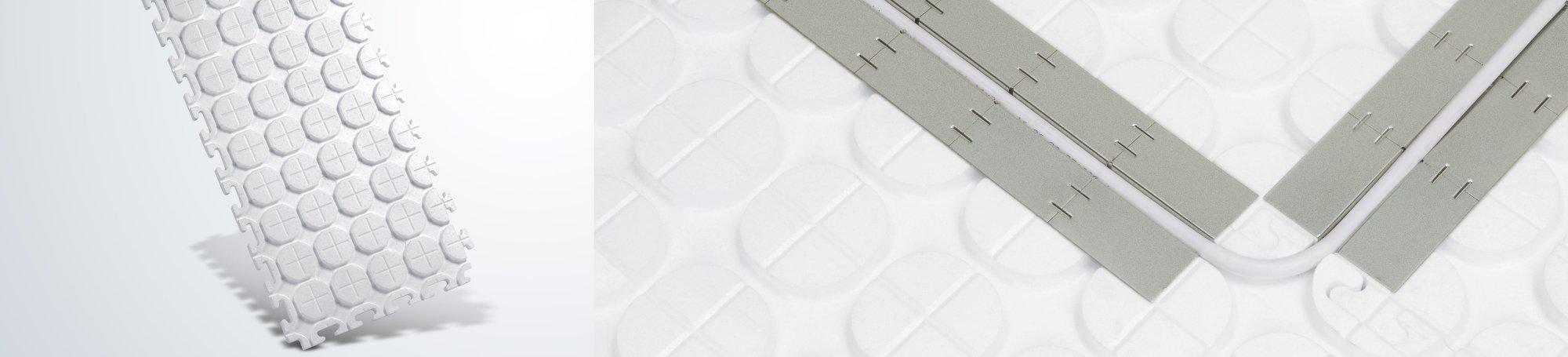

The SCHÜTZ dry panel system – Simple and comfortable!

With dry construction systems, the heating pipes are installed in heat conduction modules within the thermal insulation. The heat conduction modules ensure even heat distribution. (Please follow the instructions of the particular screed supplier.)


System features:

  • Underfloor heating system for old, new and prefabricated buildings
  • Polystyrene high-resistance foam profiled panel with swallowtail joints
  • Snail or meandering installation
  • Heat transfer module with predetermined breaking points
  • For dry and wet screed installation
  • Net area: 0.66 m²
Suitable for duo-flex and tri-o-flex® heating pipes
14 x 2 mm
Gesamtkatalog 2023

Entdecken Sie das Produktsortiment von SCHÜTZ.

Download PDF
Data sheet system panels

Dry panel system

Download PDF


System-Trockenbau

Kapitel 6

Download PDF


Product Variants

type 30 (DEO)

Technical data
ÖNORM

Heat conductivity RD0.77 m² K/W
Thermal conductivity λD
0.034 W/mK (WLG 035)
Fire behavior RtFE (EN 13501-1)
Panel thicknessdn = 30 mm
Panel size606 x 1,181 mm
Packaging size620 x 1.200 x 310 mm
Max. pressure stress wet screed5 kPa (acc. to EN 13163)
Max. pressure stress dry screed2.0**/4.0*** kPa
Article number4003961
Packaging size6.60 m²
10 Panels
PU/pallet
92.40 m²
add to watchlist
Technical data
ÖNORM

Heat conductivity RD0.77 m² K/W
Thermal conductivity λD
0.034 W/mK (WLG 035)
Fire behavior RtFE (EN 13501-1)
Panel thicknessdn = 30 mm
Panel size606 x 1,181 mm
Packaging size620 x 1.200 x 310 mm
Max. pressure stress wet screed5 kPa (acc. to EN 13163)
Max. pressure stress dry screed2.0**/4.0*** kPa
Article number4003961
Packaging size6.60 m²
10 Panels
PU/pallet
92.40 m²
add to watchlist

type 25 (DEO)

TECHNICAL DATA
ÖNORM

Heat conductivity RD0.57 m² K/W
Thermal conductivity λD
0.034 W/mK (WLG 035)
Fire behavior RtFE (EN 13501-1)
Panel thicknessdn = 25 mm
Panel size606 x 1,181 mm
Packaging size620 x 1.200 x 310 mm
Max. pressure stress wet screed5 kPa (acc. to EN 13163)
Max. pressure stress dry screed2.0**/4.0*** kPa
Article number4003959
Packaging size7.92 m²
12 Panels
PU/pallet
110.88 m²
add to watchlist
TECHNICAL DATA
ÖNORM

Heat conductivity RD0.57 m² K/W
Thermal conductivity λD
0.034 W/mK (WLG 035)
Fire behavior RtFE (EN 13501-1)
Panel thicknessdn = 25 mm
Panel size606 x 1,181 mm
Packaging size620 x 1.200 x 310 mm
Max. pressure stress wet screed5 kPa (acc. to EN 13163)
Max. pressure stress dry screed2.0**/4.0*** kPa
Article number4003959
Packaging size7.92 m²
12 Panels
PU/pallet
110.88 m²
add to watchlist
Technical data
ÖNORM

Heat conductivity RD0.77 m² K/W
Thermal conductivity λD
0.034 W/mK (WLG 035)
Fire behavior RtFE (EN 13501-1)
Panel thicknessdn = 30 mm
Panel size606 x 1,181 mm
Packaging size620 x 1.200 x 310 mm
Max. pressure stress wet screed5 kPa (acc. to EN 13163)
Max. pressure stress dry screed2.0**/4.0*** kPa
Article number4003961
Packaging size6.60 m²
10 Panels
PU/pallet
92.40 m²
add to watchlist
TECHNICAL DATA
ÖNORM

Heat conductivity RD0.57 m² K/W
Thermal conductivity λD
0.034 W/mK (WLG 035)
Fire behavior RtFE (EN 13501-1)
Panel thicknessdn = 25 mm
Panel size606 x 1,181 mm
Packaging size620 x 1.200 x 310 mm
Max. pressure stress wet screed5 kPa (acc. to EN 13163)
Max. pressure stress dry screed2.0**/4.0*** kPa
Article number4003959
Packaging size7.92 m²
12 Panels
PU/pallet
110.88 m²
add to watchlist

* acc. to DIN 4109-34: 2016-07 for areal screed mass ≥ 120 kg/m²

 **max. area load for Fermacell 2E22, for other dry screed please consult manufacturer’s guide book

 ***max. area load for Fermacell 2E22 + 10 mm gypsum fibre board, for other dry screed please consult manufacturer’s guide book
