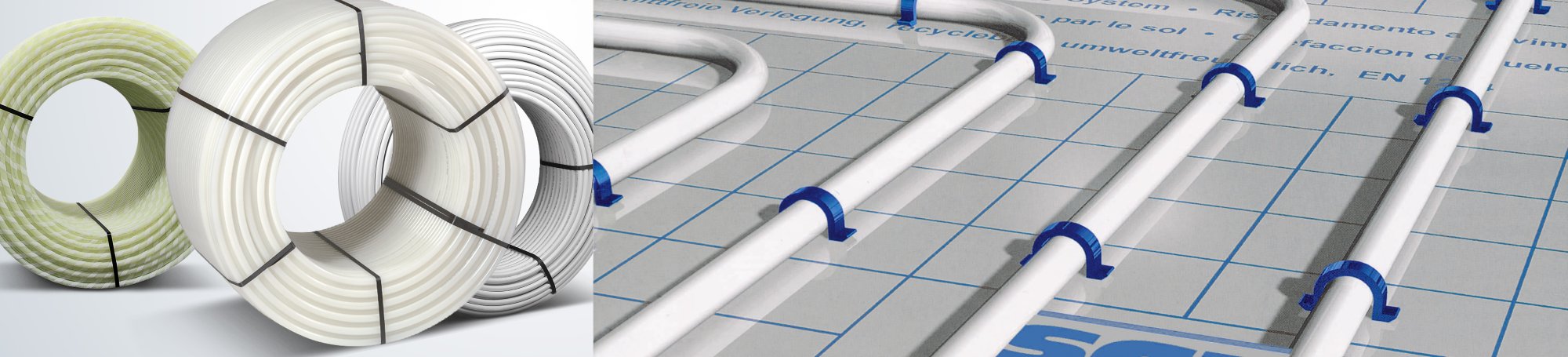

Schütz system heating pipes –
The right product for each application.

Three types of heating pipes are available for use in underfloor heating and cooling systems: duo-flex PE-X plastic safety heating pipes made of cross-linked polyethylene, non-cross-linked duo-flex plastic safety heating pipes PE-RT, and tri-o-flex® metal safety heating pipes. The three types of pipes are distinguished by long life cycles, corrosion and incrustation resistance, chemical resistance and flexibility, and are especially easy to install.

Gesamtkatalog 2023

Entdecken Sie das Produktsortiment von SCHÜTZ.

Download PDF
Heizrohre und Zubehör

Kapitel 10

Download PDF

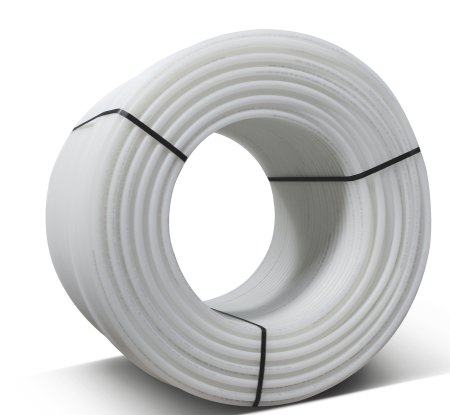

5-LAYER PLASTIC SAFETY HEATING PIPE



duo-flex PE-Xa

Manufactured according to DIN 15875, impervious to oxygen diffusion according to DIN 4726. Made of cross-linked polyethylene PE-Xa (peroxide cross-linked).


Data sheet system heating pipes

duo-flex PE-Xa

Download PDF

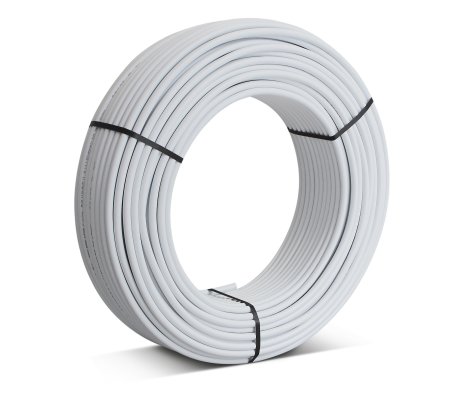

METAL COMPOSITE SAFETY HEATING PIPE



tri-o-flex®

Metal composite pipe impervious to diffusion, PE/AL/PE, impervious to oxygen diffusion.



Data sheet system heating pipes

tri-o-flex®

Download PDF

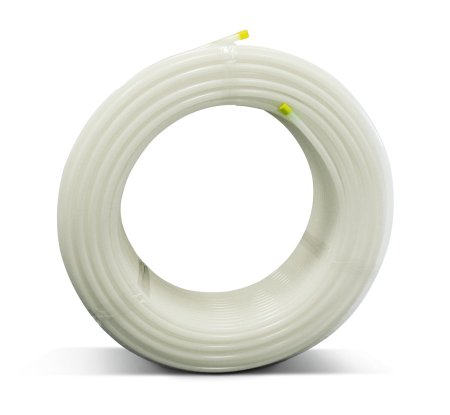

NON-CROSS-LINKED HEATING PIPE PLASTIC (NEW)



duo-flex PE-RT

Manufactured according to DIN 16833, impervious to oxygen diffusion according to DIN 4726. Made of non-cross-linked polyethylene PE-Xa.


Data sheet system heating pipes

duo-flex PE-RT

Download PDF

5 LAYER PLASTIC SAFETY HEATING PIPE



duo-flex Klett PE-Xa

Manufactured according to DIN 15875, impervious to oxygen diffusion according to DIN 4726. Made of cross-linked polyethylene PE-Xa (peroxide cross-linked).


Data sheet system heating pipes

duo-flex Klett PE-Xa

Download PDF


Product Variants

duo-flex PE-Xa

Technical data
Max. operating temperature95 °C
Max. operating pressure6 bar
Bending radius
5 x d
Coefficient of thermal expansion
1.4 x 10-4 K-1
add to watchlist
Technical data
Max. operating temperature95 °C
Max. operating pressure6 bar
Bending radius
5 x d
Coefficient of thermal expansion
1.4 x 10-4 K-1
add to watchlist

tri-o-flex®


TEChNICal DATa
Max. operating temperature
95 °C
Max. operating pressure
6 bar

Bending radius


3 x d/5 x d
with/without bending help
Coefficient of thermal expansion
2.3 x 10-5 K-1
add to watchlist


TEChNICal DATa
Max. operating temperature
95 °C
Max. operating pressure
6 bar

Bending radius


3 x d/5 x d
with/without bending help
Coefficient of thermal expansion
2.3 x 10-5 K-1
add to watchlist

duo-flex PE-RT

TEChNICal DATa
Max. operating temperature
95 °C
Max. operating pressure
6 bar
Bending radius
5 x d
Coefficient of thermal expansion
1.5 x 10-4 K-1
add to watchlist
TEChNICal DATa
Max. operating temperature
95 °C
Max. operating pressure
6 bar
Bending radius
5 x d
Coefficient of thermal expansion
1.5 x 10-4 K-1
add to watchlist

duo-flex Klett PE-Xa

Technical data
Max. operating temperature95 °C
Max. operating pressure6 bar
Bending radius
5 x d
Coefficient of thermal expansion
1.4 x 10-4 K-1
add to watchlist
Technical data
Max. operating temperature95 °C
Max. operating pressure6 bar
Bending radius
5 x d
Coefficient of thermal expansion
1.4 x 10-4 K-1
add to watchlist
Technical data
Max. operating temperature95 °C
Max. operating pressure6 bar
Bending radius
5 x d
Coefficient of thermal expansion
1.4 x 10-4 K-1
add to watchlist


TEChNICal DATa
Max. operating temperature
95 °C
Max. operating pressure
6 bar

Bending radius


3 x d/5 x d
with/without bending help
Coefficient of thermal expansion
2.3 x 10-5 K-1
add to watchlist
TEChNICal DATa
Max. operating temperature
95 °C
Max. operating pressure
6 bar
Bending radius
5 x d
Coefficient of thermal expansion
1.5 x 10-4 K-1
add to watchlist
Technical data
Max. operating temperature95 °C
Max. operating pressure6 bar
Bending radius
5 x d
Coefficient of thermal expansion
1.4 x 10-4 K-1
add to watchlist

Please refer to the technical information for the permissible permanent temperatures at the respective operating pressure according to the relevant standards.
