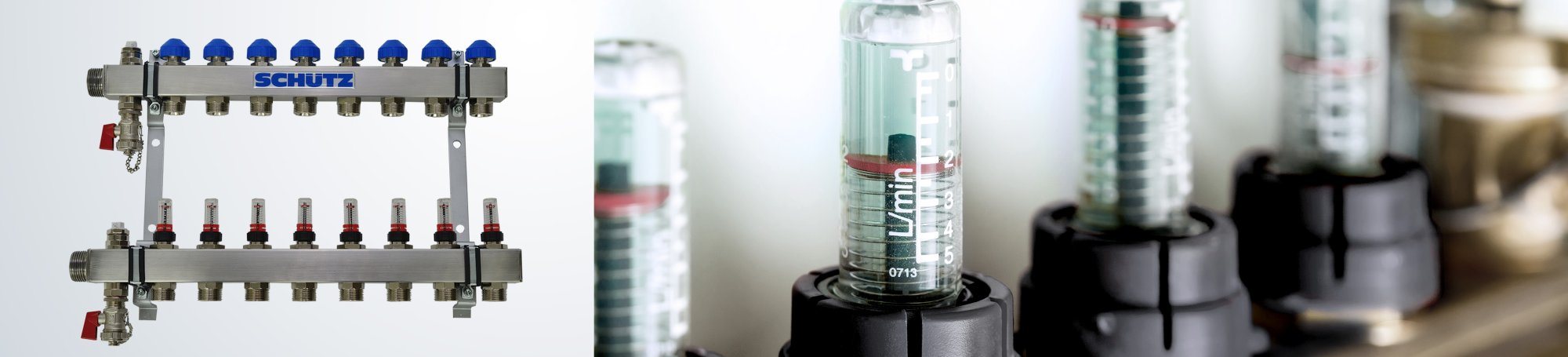

All components of the SCHÜTZ underfloor heating circuit manifold are optimally co-ordinated, consistently following the system concept in combination with the manifold cabinets, and can be used for underfloor heating and cooling systems. The compact dimensions and the vertically offset arrangement of the inflow and return of the individual heating circuits results in the low installation height of the easy-to-install underfloor heating circuit manifold type 90-3.

Product features:

  • Manifold stems made of stainless steel
  • Easy-installation, flat-sealing connection technology
  • Manifold with 1” external thread on one side for system connection on right or left or on alternate sides
  • Draining and ventilation valve integrated in the manifold stems
  • Patented ventilation
  • Dimensions favourable for hydraulics (35 x 35 x 1.5 mm), 2-14K
  • Special anti-twist device on Eurokonus thread
  • Product developed by SCHÜTZ
  • Easy installation in 90 mm box
SCHÜTZ Flächenheizsysteme Preisliste
Download PDF
Data sheet manifold

Heating circuit manifold

Download PDF


Kapitel 10.1

Download PDF

Kapitel 10.2

Download PDF
Installation instruction heating circuit manifold

Type Comfort 90-3

Download PDF

Product Variants

Heating circuitsLengthArticle numberadd to watchlist
2170 mm3053410
add to watchlist
3220 mm3053411
add to watchlist
4270 mm3053412
add to watchlist
5320 mm3053413
add to watchlist
6370 mm3053414
add to watchlist
7420 mm3053415
add to watchlist
8470 mm3053416
add to watchlist
9520 mm3053417
add to watchlist
10570 mm3053418
add to watchlist
11620 mm3053419
add to watchlist
12670 mm3053420
add to watchlist
13720 mm3053421
add to watchlist
14770 mm3053422
add to watchlist
