SCHÜTZ KLETT fleece and fibre KLETT –
Solutions for any application .

The Klett system meets a wide range of requirements not only in new buildings, but also in renovation projects thanks to minimum installation heights. In combination with mineral insulation, for example, building projects with special requirements for fire protection and impact sound can be realised.

Renovation

When it comes to renovation, special requirements always arise in the area of floor construction for which practical solutions must be found.

  • If only a small height is available for installation of the underfloor heating, the use of Klett fleece with a thickness of 2 mm, 6 mm or 10 mm is particularly suitable.
  • If the underfloor heating is installed on a wooden beam ceiling in an old building, the use of mineral insulation is recommended. Thanks to its excellent fire protection properties, it contributes to even more safety as a precautionary measure.

New builds

In addition to EPS as a standard solution for large-scale installation in new buildings, more stringent requirements for impact sound and fire protection are also increasingly applicable in new buildings. The properties displayed by mineral wool also make it particularly suitable for these special cases.


Our system solutions are as diverse as your requirements. It goes without saying that all products can be installed in new buildings as well as in existing ones and, depending on the building project, this also makes sense. We will be happy to advise you individually and find the optimal solution for your project.

The advantages of SCHÜTZ fibre Klett mineral insulation



Impact sound protection: noise and irritating sounds are significantly reduced.



Fire protection:
mineral insulation is non-flammable, thereby contributing to fire protection and increased safety.


Ecology: mineral wool almost exclusively comprises natural mineral raw materials, can be recycled again and again, and thus contributes to environmental protection.



Thermal protection:
optimal thermal insulation minimises thermal losses and makes a contribution to energy efficiency.


Durability: the durable and robust insulation material retains its full functionality over a long useful life.

Product Variants

Klettvlies

2 mm PER

TECHNICAL DATA
Materialartificial fibres
Colour
grey
Panel size1,000 x 500 x 2 mm
Type of constructioncomposite construction
Foil overlap/installation method
butt to butt
Adhesion
self-adhering with release foil
Article number
5007206
PU (= packaging unit) / box
40 pcs.
20 m² / box
add to watchlist
TECHNICAL DATA
Materialartificial fibres
Colour
grey
Panel size1,000 x 500 x 2 mm
Type of constructioncomposite construction
Foil overlap/installation method
butt to butt
Adhesion
self-adhering with release foil
Article number
5007206
PU (= packaging unit) / box
40 pcs.
20 m² / box
add to watchlist

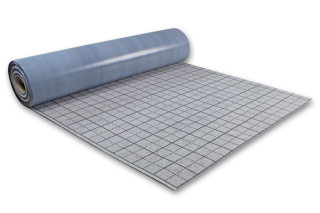

Klettvlies

2 mm

TECHNICAL DATA
MaterialArtificial fibres (polyester)
Colour
Grey with black grid
Roller size1,050 x 20,000 x 2 mm
Effective size1,000 x 20,000 mm
Tolerance
Width: ± 2,0 mm
Length ± 0,1%
Thickness ± 10%
Adhesion
Self-adhesive with release foil
Edge design
blunt
Surface weightapprox 300 g/m²
Melting point (raw material)> 110 °C
Laying pattern50 mm
Article number5007204
VPE/roll
21 m²
add to watchlist
TECHNICAL DATA
MaterialArtificial fibres (polyester)
Colour
Grey with black grid
Roller size1,050 x 20,000 x 2 mm
Effective size1,000 x 20,000 mm
Tolerance
Width: ± 2,0 mm
Length ± 0,1%
Thickness ± 10%
Adhesion
Self-adhesive with release foil
Edge design
blunt
Surface weightapprox 300 g/m²
Melting point (raw material)> 110 °C
Laying pattern50 mm
Article number5007204
VPE/roll
21 m²
add to watchlist

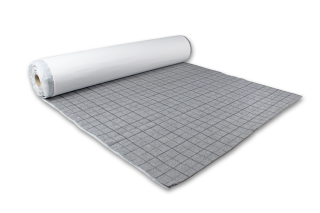

Klettvlies

soft 10 mm

TECHNICAL DATA
MaterialArtificial fibre composite material
ColourGrey with black grid
Roller size8.000 x 1.300 x 10 mm
Effective size
8.000 x 1.250 mm
Tolerance
Width: ± 2 mm
Length : ± 0,1 %
Thickness : ± 10 %
Traffic load
4 kN/m²
Edge design
Self-adhesive strips with release foil on the underside of overlapping
Compressibility≤ 3 mm
Acoustic improvement valueUp to 28 dB as per DIN 4109-34
Article number5007205
VPE/roll
10 m²
add to watchlist
TECHNICAL DATA
MaterialArtificial fibre composite material
ColourGrey with black grid
Roller size8.000 x 1.300 x 10 mm
Effective size
8.000 x 1.250 mm
Tolerance
Width: ± 2 mm
Length : ± 0,1 %
Thickness : ± 10 %
Traffic load
4 kN/m²
Edge design
Self-adhesive strips with release foil on the underside of overlapping
Compressibility≤ 3 mm
Acoustic improvement valueUp to 28 dB as per DIN 4109-34
Article number5007205
VPE/roll
10 m²
add to watchlist

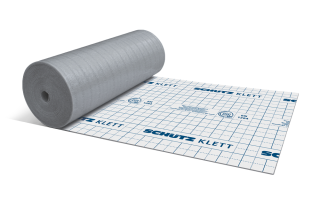

Klettvlies

PE Schaum 6 mm

TECHNICAL DATA
MaterialPolyethylene foam
Dimensions
1,000 x 20,000 mm
Thickness dN6 mm
Temperature resistance
long-term
short-term

40 °C
50 °C
Thermal conductivity λD
0,045 W/mK
Max. load
5,0 kN/m²
Fire behaviour RtF
E (EN 13501-1)
Compressibility≤ 2 mm
Acoustic improvement value ∆Lw,R13 dB
Thickness tolerance+ 2 mm / - 0 mm
Length tolerance
- 2%
Width tolerance± 1,0 %
Building material class to DIN 4102-1
B 2
Processing temperature
> 8 °C
Article number3081924
VPE/roll
20 m²

Also available as packing unit 50 m²/roll, item no. 3107233

add to watchlist
TECHNICAL DATA
MaterialPolyethylene foam
Dimensions
1,000 x 20,000 mm
Thickness dN6 mm
Temperature resistance
long-term
short-term

40 °C
50 °C
Thermal conductivity λD
0,045 W/mK
Max. load
5,0 kN/m²
Fire behaviour RtF
E (EN 13501-1)
Compressibility≤ 2 mm
Acoustic improvement value ∆Lw,R13 dB
Thickness tolerance+ 2 mm / - 0 mm
Length tolerance
- 2%
Width tolerance± 1,0 %
Building material class to DIN 4102-1
B 2
Processing temperature
> 8 °C
Article number3081924
VPE/roll
20 m²

Also available as packing unit 50 m²/roll, item no. 3107233

add to watchlist

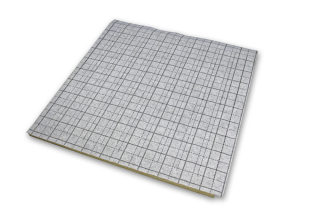

Fiberklett

MW 30-3

TECHNICAL DATA
MaterialMineral wool
Tile sizes
1,000 x 1,000 x 30 mm
Longitudinal top layer overlap30 / 80 mm
Tile thickness dL –c27 mm
Thermal conductivity λD
0,035 W/mK (WLG 035)
Thermal resistance RD to DIN EN 12640,86 m² K/W
Dynamic rigiditySD 20 (≤ 19 MN/m³)
Max. useful load to DIN EN 131635 kPa
Acoustic improvement value ∆Lw,R
28 dB
Melting point≥ 1 000 °C
Laying pattern50 mm
Insulation material building material/fire classA1 as per Euro class
Weight
ca. 3,15 kg/m²
Velour composite foil
Meets the requirements pursuant to DIN 18560
Area of application
EN 1991-1-1, Tab. 6.1
DE

A1-A3./ B1./ D1 / T1
Article number5007203
Packing unit/pallet
40 m²/ Pallet
add to watchlist
TECHNICAL DATA
MaterialMineral wool
Tile sizes
1,000 x 1,000 x 30 mm
Longitudinal top layer overlap30 / 80 mm
Tile thickness dL –c27 mm
Thermal conductivity λD
0,035 W/mK (WLG 035)
Thermal resistance RD to DIN EN 12640,86 m² K/W
Dynamic rigiditySD 20 (≤ 19 MN/m³)
Max. useful load to DIN EN 131635 kPa
Acoustic improvement value ∆Lw,R
28 dB
Melting point≥ 1 000 °C
Laying pattern50 mm
Insulation material building material/fire classA1 as per Euro class
Weight
ca. 3,15 kg/m²
Velour composite foil
Meets the requirements pursuant to DIN 18560
Area of application
EN 1991-1-1, Tab. 6.1
DE

A1-A3./ B1./ D1 / T1
Article number5007203
Packing unit/pallet
40 m²/ Pallet
add to watchlist
Fiberklett

MW 30-5

TECHNICAL DATA
MaterialMineral wool
Tile sizes1,000 x 1,000 x 30 mm
Longitudinal top layer overlap30 / 80 mm
Tile thickness dL –c25 mm
Thermal conductivity λD0,035 W/mK (WLG 035)
Thermal resistance RD to DIN EN 12640,85 m² K/W
Dynamic rigiditySD 11 (≤ 11 MN/m³)
Max. useful load to DIN EN 131635 kPa
Acoustic improvement value ∆Lw,R29 dB
Melting point≥ 1 000 °C
Laying pattern50 mm
Insulation material building material/fire classA1 as per Euro class
Weight
ca. 3 kg/m²
Velour composite foil
Meets the requirements pursuant to DIN 18560
Area of application
EN 1991-1-1, Tab. 6.1
DE

A1-A3./ B1./ D1 / T1
Article number5007202
Packing unit/pallet
40 m² / Pallet
add to watchlist
TECHNICAL DATA
MaterialMineral wool
Tile sizes1,000 x 1,000 x 30 mm
Longitudinal top layer overlap30 / 80 mm
Tile thickness dL –c25 mm
Thermal conductivity λD0,035 W/mK (WLG 035)
Thermal resistance RD to DIN EN 12640,85 m² K/W
Dynamic rigiditySD 11 (≤ 11 MN/m³)
Max. useful load to DIN EN 131635 kPa
Acoustic improvement value ∆Lw,R29 dB
Melting point≥ 1 000 °C
Laying pattern50 mm
Insulation material building material/fire classA1 as per Euro class
Weight
ca. 3 kg/m²
Velour composite foil
Meets the requirements pursuant to DIN 18560
Area of application
EN 1991-1-1, Tab. 6.1
DE

A1-A3./ B1./ D1 / T1
Article number5007202
Packing unit/pallet
40 m² / Pallet
add to watchlist
