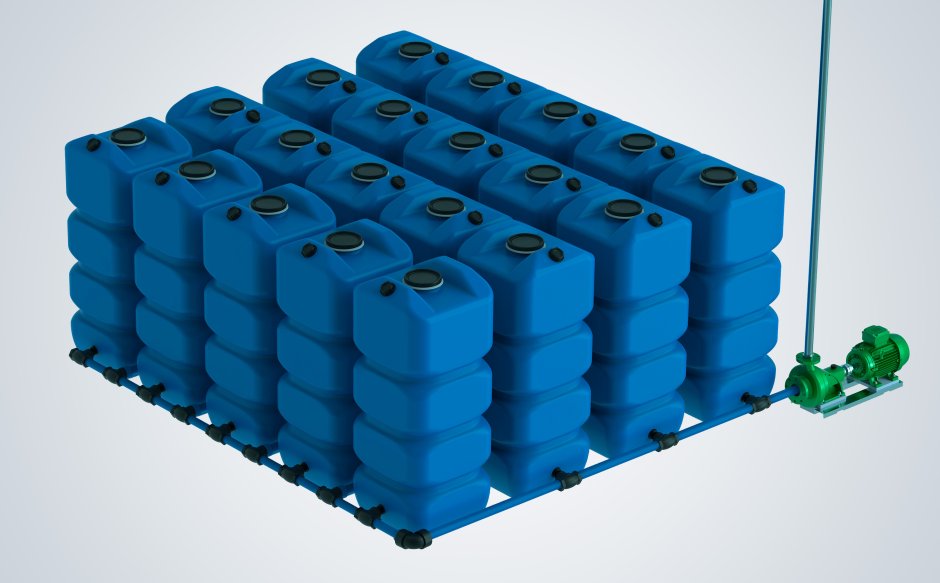

Thanks to its special modular design and regardless of the available space, the Aquablock M System by SCHÜTZ provides you with the best solution for increasing your storage capacities in line with your demands
Thanks to its special modular design and regardless of the available space, the Aquablock M System by SCHÜTZ provides you with the best solution for increasing your storage capacities in line with your demands
The AQUABLOCK M is:
The Aquablock M offers:
Ⓐ

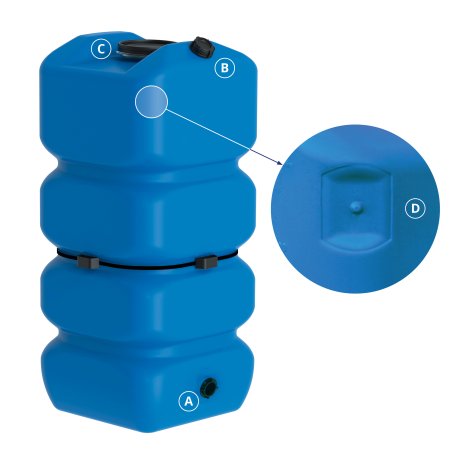

Connection hole (inlet, outlet) with internal thread S75 with an adapter to a 2“ internal thread with a flat joint and a 2“ plug with external thread and O-ring.
Ⓑ
Inspection hole with external thread S75 with a cap.
Ⓒ
250 mm opening with cap and clamp. The cap has 2 connection holes, one of 2“ and the other ¾“, both with plug.
Ⓓ
Flat and reinforced area for drilling and attaching connections (level buoy, water pipe, etc.)
| Capacity | 600 litres |
| Length | 1,850 mm |
| Width | 790 mm |
| Height | 1,650 mm |
| Weight | 75 kg |
| Article number | 4011487 |
| Capacity | 600 litres |
| Length | 1,850 mm |
| Width | 790 mm |
| Height | 1,650 mm |
| Weight | 75 kg |
| Article number | 4011487 |
| Capacity | 750 litres |
| Length | 1,850 mm |
| Width | 790 mm |
| Height | 1,950 mm |
| Weight | 81 kg |
| Article number | 996130 |
| Capacity | 750 litres |
| Length | 1,850 mm |
| Width | 790 mm |
| Height | 1,950 mm |
| Weight | 81 kg |
| Article number | 996130 |
| Capacity | 1,000 litres |
| Length | 1,850 mm |
| Width | 1,150 mm |
| Height | 1,850 mm |
| Weight | 90 kg |
| Article number | 996149 |
| Capacity | 1,000 litres |
| Length | 1,850 mm |
| Width | 1,150 mm |
| Height | 1,850 mm |
| Weight | 90 kg |
| Article number | 996149 |

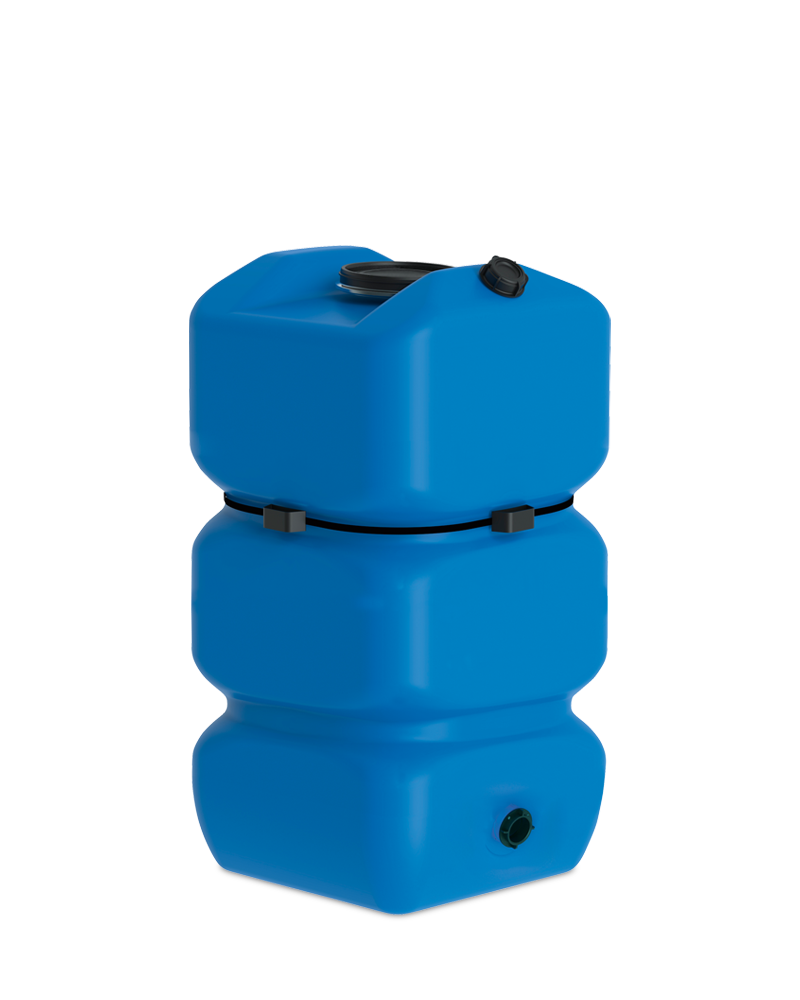

| Capacity | 600 litres |
| Length | 1,850 mm |
| Width | 790 mm |
| Height | 1,650 mm |
| Weight | 75 kg |
| Article number | 4011487 |

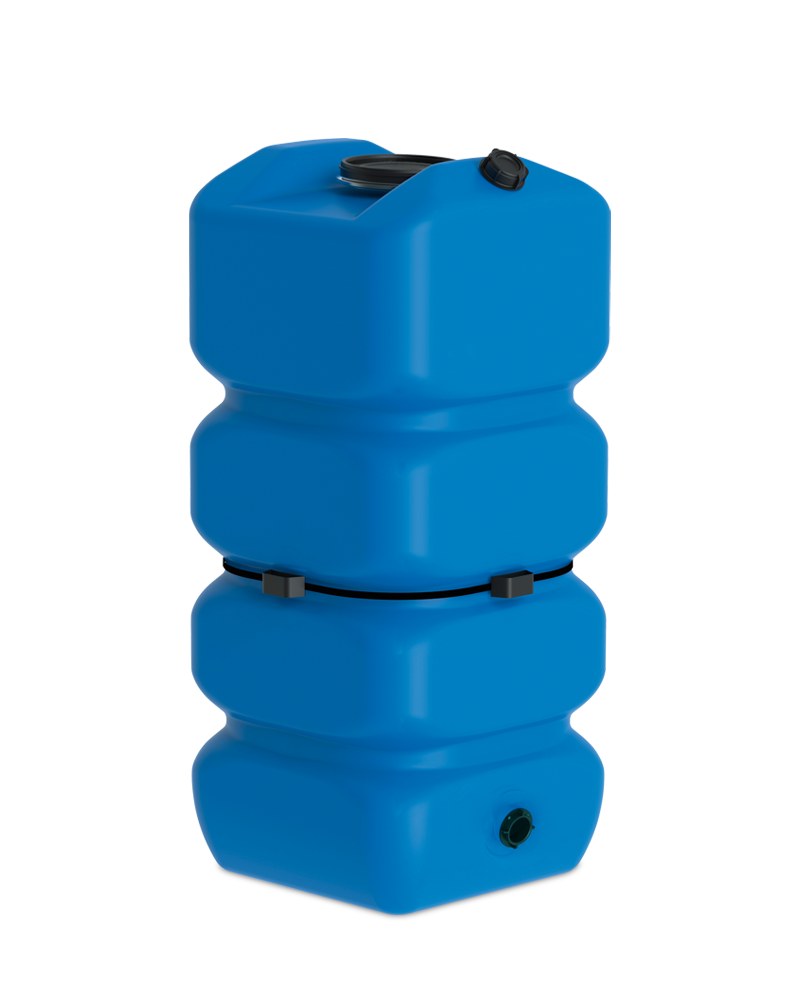

| Capacity | 750 litres |
| Length | 1,850 mm |
| Width | 790 mm |
| Height | 1,950 mm |
| Weight | 81 kg |
| Article number | 996130 |

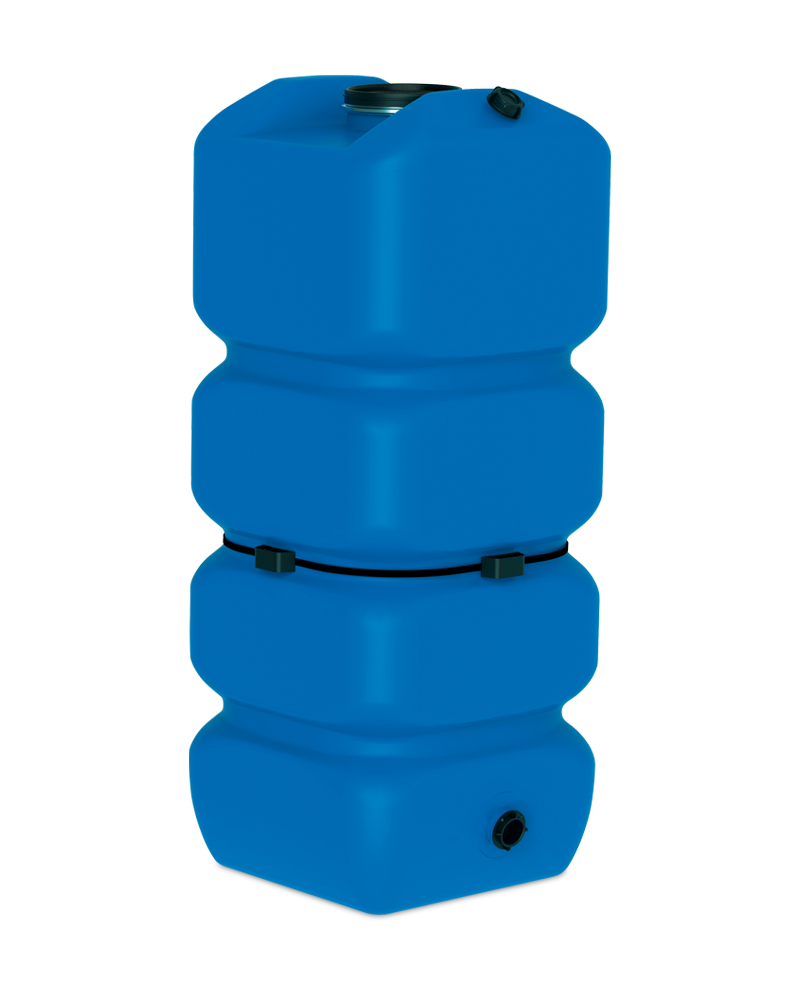

| Capacity | 1,000 litres |
| Length | 1,850 mm |
| Width | 1,150 mm |
| Height | 1,850 mm |
| Weight | 90 kg |
| Article number | 996149 |
