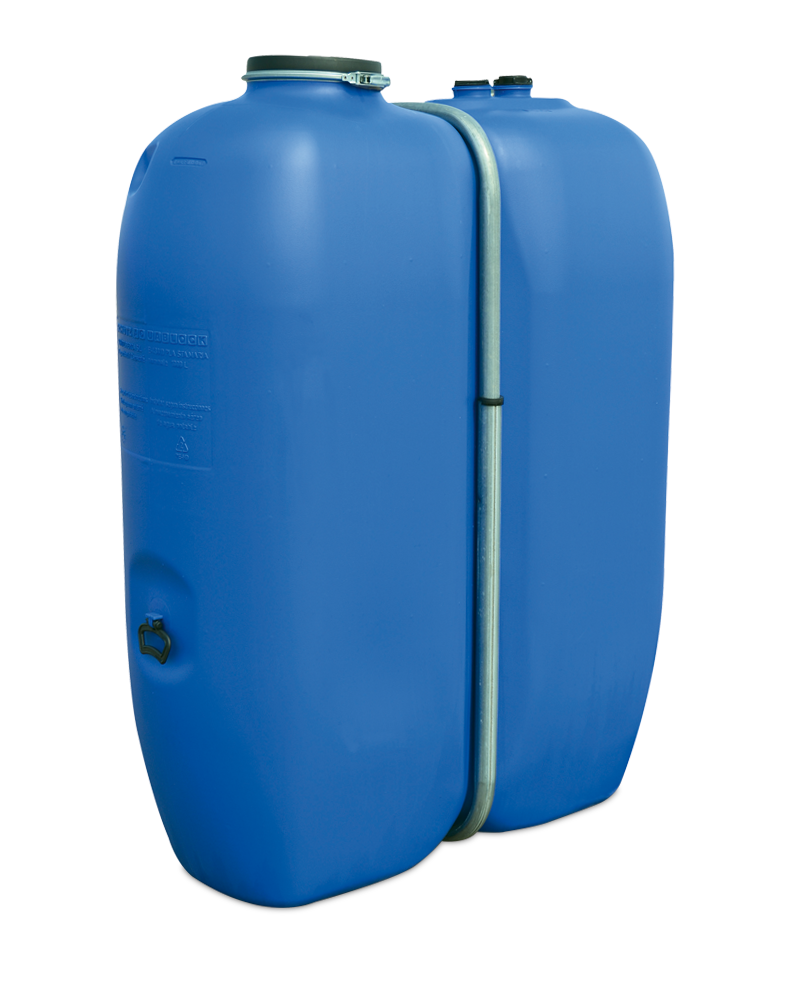

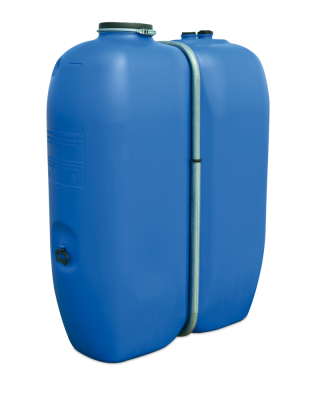

AQUABLOCK BT –
Large capacity in small dimensions.

The design of this tank allows it to pass through any access point thanks to its reduced dimensions, thus offering a huge storage capacity in a minimum space.

The AQUABLOCK BT is:

  • Robust
  • Made of polyethylene (HDPE) and colour pigmented
  • Protected against solar radiation
  • Apt for drinking water, liquids for human consumption (such as wine, oil, etc.) as well as other liquids compatible with HDPE
  • 100 % recyclable

The Aquablock BT offers:

  • Easy access through narrow passages
  • Apt for the hygienic conservation of water to maintain its organoleptic properties (colour, smell, taste)
  • Possibility of outdoor installation
  • Complies with current legislation
  • Easy installation and connection

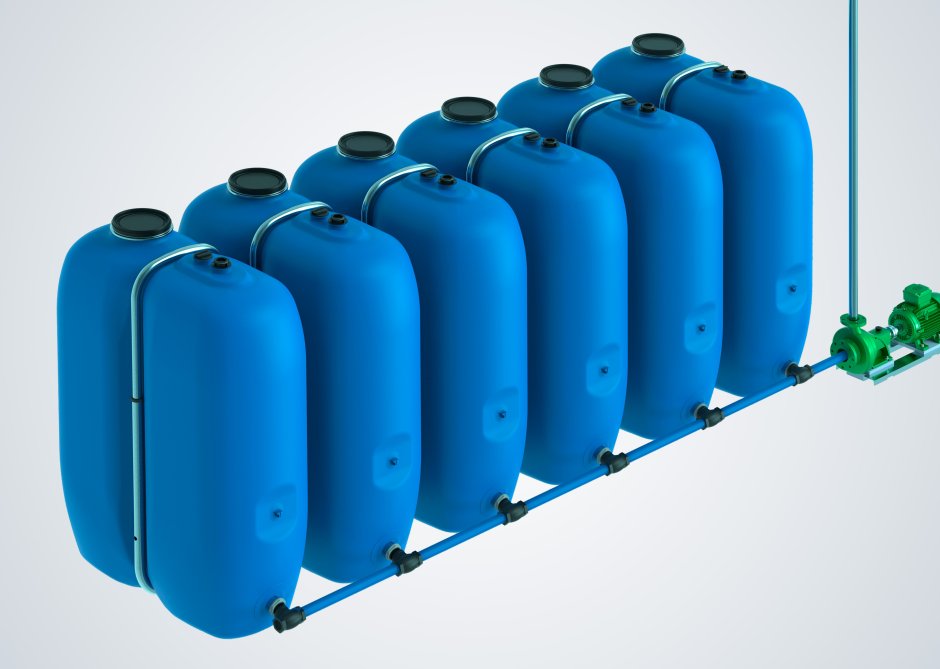

  • Easy assembly, individually or in battery
  • 2“ outlet

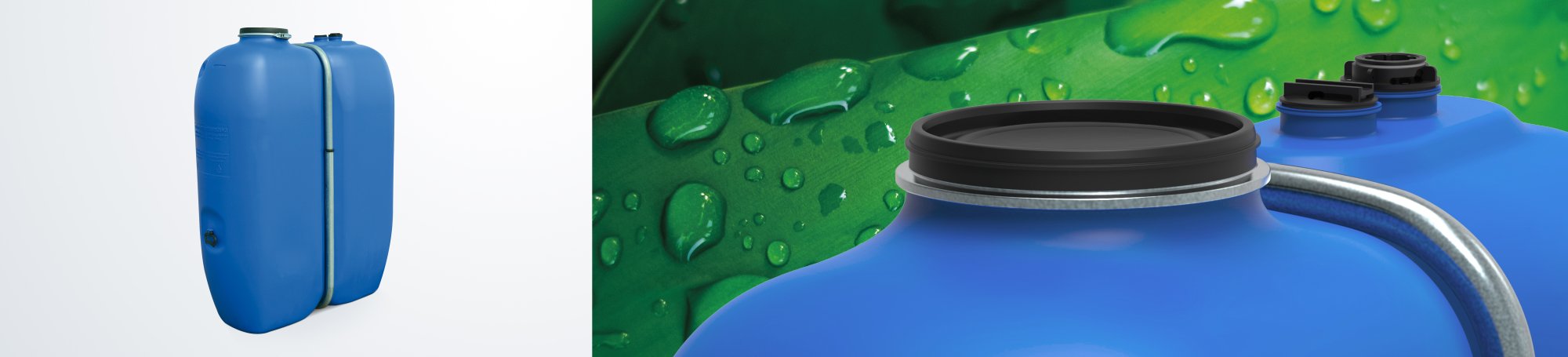

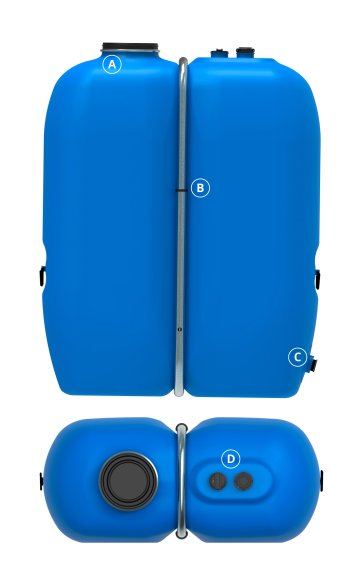

Opening of 250 mm with cap and clamp. The cap has two connection holes, one 2“ and the other ¾“, both with  a plug.


Reinforcing steel structure preventing deformation caused by water pressure


Connection hole (inlet, outlet) internal thread S75 with adapter to 2“ and plug with external thread of 2“ with O-ring.


2“ ventilation and inlet openings with their respective screw plugs.

1,000 L

Aquablock BT

PRODUCT DETAILS
Capacity
1,000 litres
Length
1,348 mm
Width
640 mm
Height
1,710 mm
Weight
37 kg
Article number
4002122
add to watchlist
PRODUCT DETAILS
Capacity
1,000 litres
Length
1,348 mm
Width
640 mm
Height
1,710 mm
Weight
37 kg
Article number
4002122
add to watchlist
PRODUCT DETAILS
Capacity
1,000 litres
Length
1,348 mm
Width
640 mm
Height
1,710 mm
Weight
37 kg
Article number
4002122
add to watchlist
Folleto SCHÜTZ DEPÓSITOS DE AGUA
Download PDF
CATÁLOGO SCHÜTZ DEPÓSITOS DE GASOIL Y AGUA
Download PDF
AQUABLOCK BT

1.000 l

Download PDF
