TANK IN TANK PLASTIC – ALWAYS STATE OF THE ART.

TANK In TANK Plastic – Always state of the art.



Twin-wall tanks offered by SCHÜTZ are the ideal solution for storing heating oil in small or large rooms. Double safety thanks to a system comprising an inner tank and a collection pan.

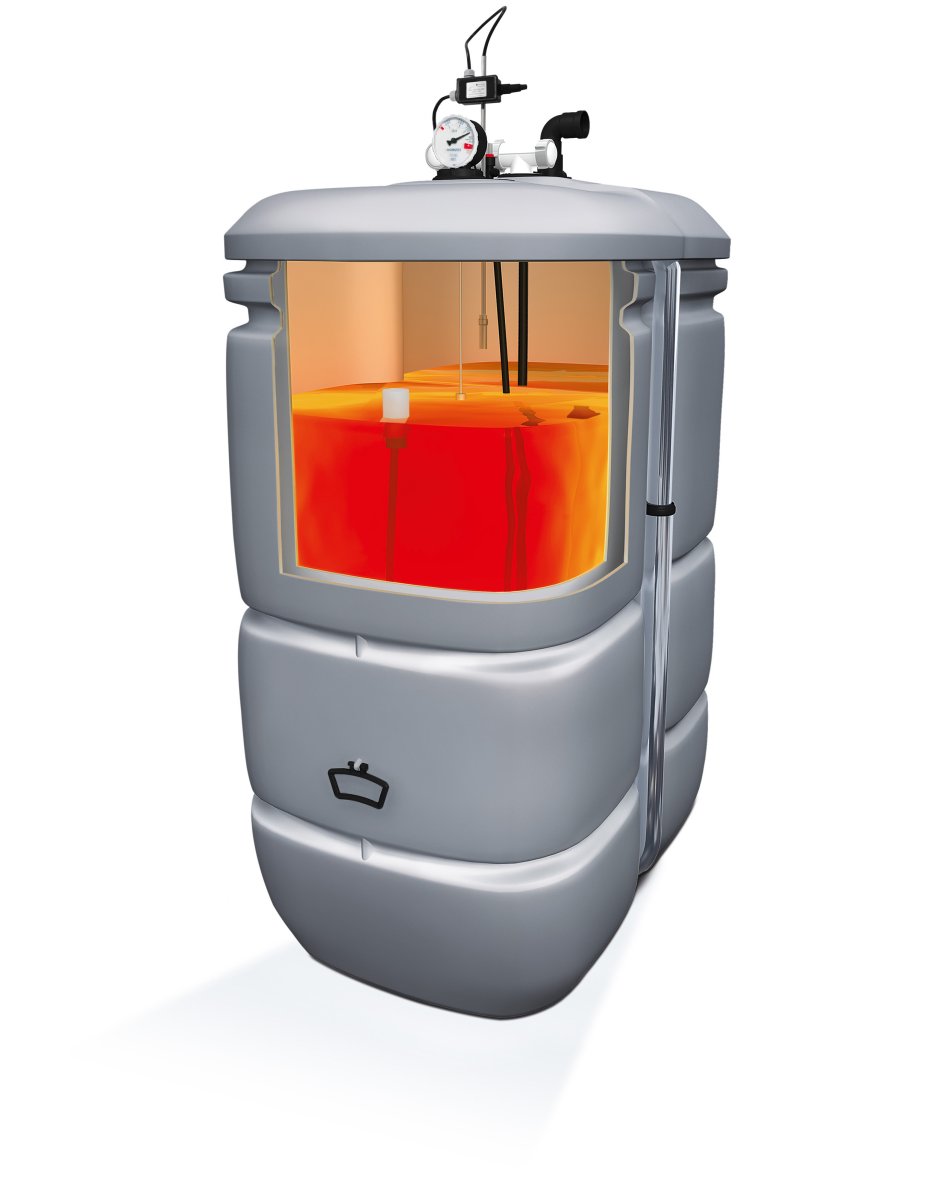

The SCHÜTZ TANK IN TANK:

  • Sturdy
  • Fire test passed (MPA)
  • Saves space
  • Awarded the PROOFED BARRIER® quality label

The SCHÜTZ TANK IN TANK offers:

  • Optimum utilisation of space thanks to appropriate dimensions
  • Many installation options
  • 15-year manufacturer’s guarantee
  • SMP odour barrier

The NIV-O-QUICK assembly system

The NIV-O-QUICK assembly system

Plug-in ventilation line (DN 40)

Sturdy and dimensionally stable

Sturdy and dimensionally stable

The vertical steel ties provide optimal and permanent stability.

SMP odour barrier to prevent oil odours

SMP odour barrier to prevent oil odours

Both the inner tank (inside and out) and the accessories have an odour barrier that permanently protects the systems against absorbing heating oil and thus against odour escape. Regular checks of the SMP process by the Frauenhofer-Institute in Freising mean our products are entitled to bear the quality label PROOFED BARRIER®.

Many different options

Many different options

We have the right solution for any type of space, especially if you are renovating.

Saves space

Saves space

There is no need for additional safety measures such as walling, triple protective coating or a separate heating oil storage room (until 5,000 l).

Easy, uncomplicated handling

Easy, uncomplicated handling

The TANK IN TANK system offers many advantages with regards to dimensions, versatility and weight. Thanks to the special production method, there is no need for a heavy metal casing.

Fire protection included

Fire protection included

The plastic TANK IN TANK system is resistant to flames, and has the corresponding certification (MPA Erwitte fire test).

Improved level indicator

Improved level indicator

The new level indicator can be used individually for double SCHÜTZ containers. Each level indicator all slices of our double-tank types are supplied. The matching transparent content scale is simply clipped on from the outside.


Product Variants

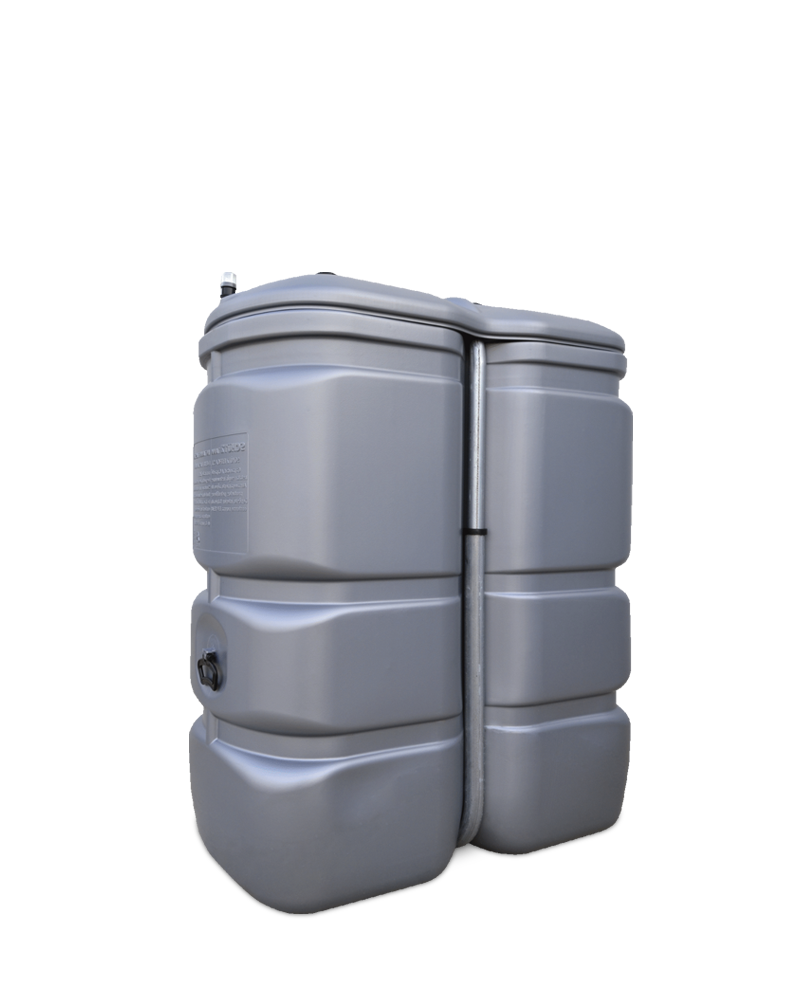

MODULAR

750 L

TANK IN TANK

Plastic

Product details750 L
Approval CE
DoP 89283/09-1
Length1,190 mm
Width660 mm
Height without piping1,450 mm
Height with piping1,600 mm
Weight46 kg
Article number4008325
add to watchlist
Product details750 L
Approval CE
DoP 89283/09-1
Length1,190 mm
Width660 mm
Height without piping1,450 mm
Height with piping1,600 mm
Weight46 kg
Article number4008325
add to watchlist

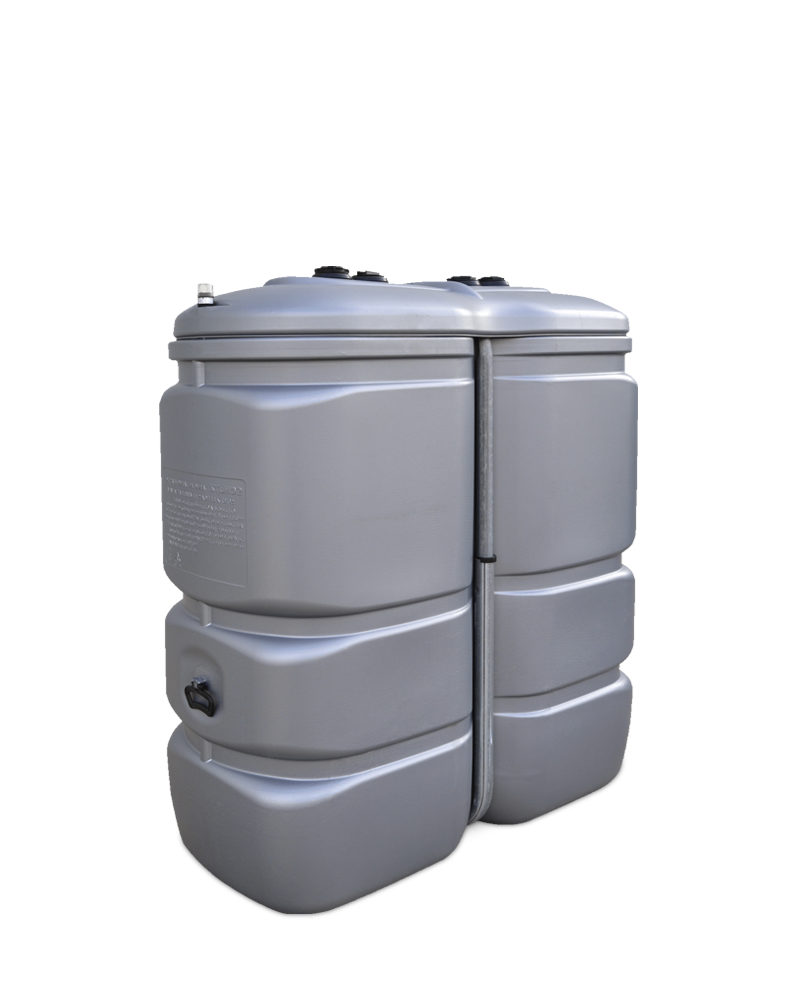

1,000 L

TANK IN TANK

Plastic

Product details1,000 L
Approval CE
DoP 89283/09-3
Length1,190 mm
Width770 mm
Height without piping1,700 mm
Height with piping1,850 mm
Weight61 kg
Article number4008321
add to watchlist
Product details1,000 L
Approval CE
DoP 89283/09-3
Length1,190 mm
Width770 mm
Height without piping1,700 mm
Height with piping1,850 mm
Weight61 kg
Article number4008321
add to watchlist

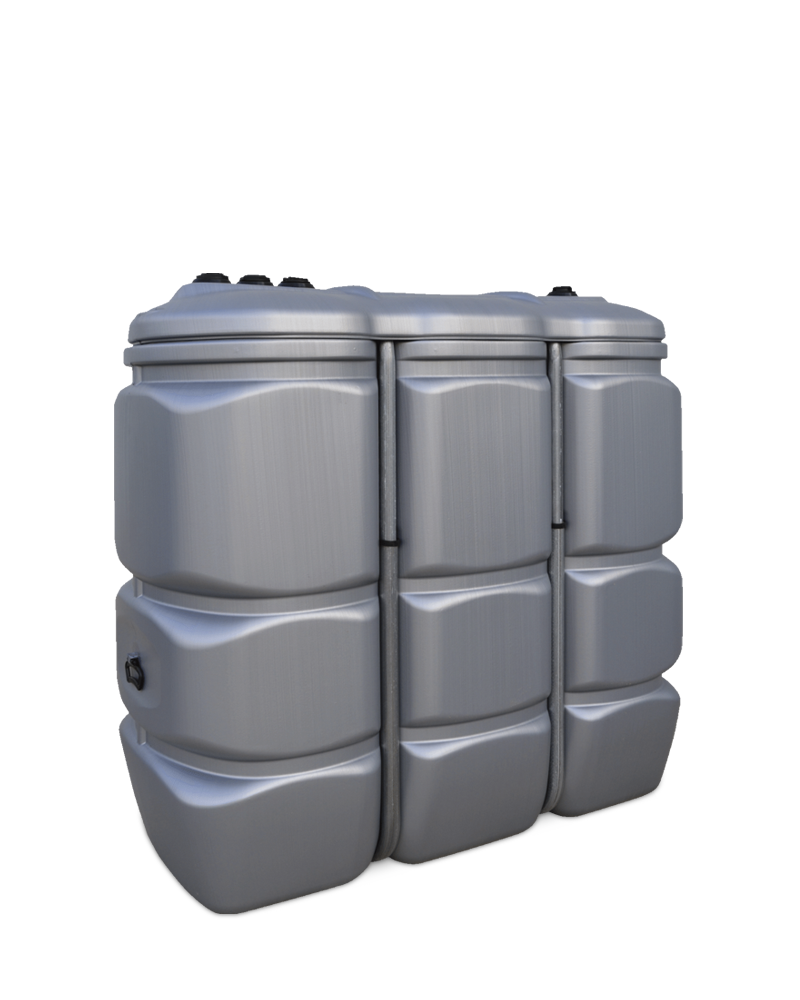

1,500 L

TANK IN TANK

Plastic

Product details1,500 L
Approval CE
DoP 89283/09-5
Length1,720 mm
Width770 mm
Height without piping1,700 mm
Height with piping1,850 mm
Weight103 kg
Article number4008326
add to watchlist
Product details1,500 L
Approval CE
DoP 89283/09-5
Length1,720 mm
Width770 mm
Height without piping1,700 mm
Height with piping1,850 mm
Weight103 kg
Article number4008326
add to watchlist

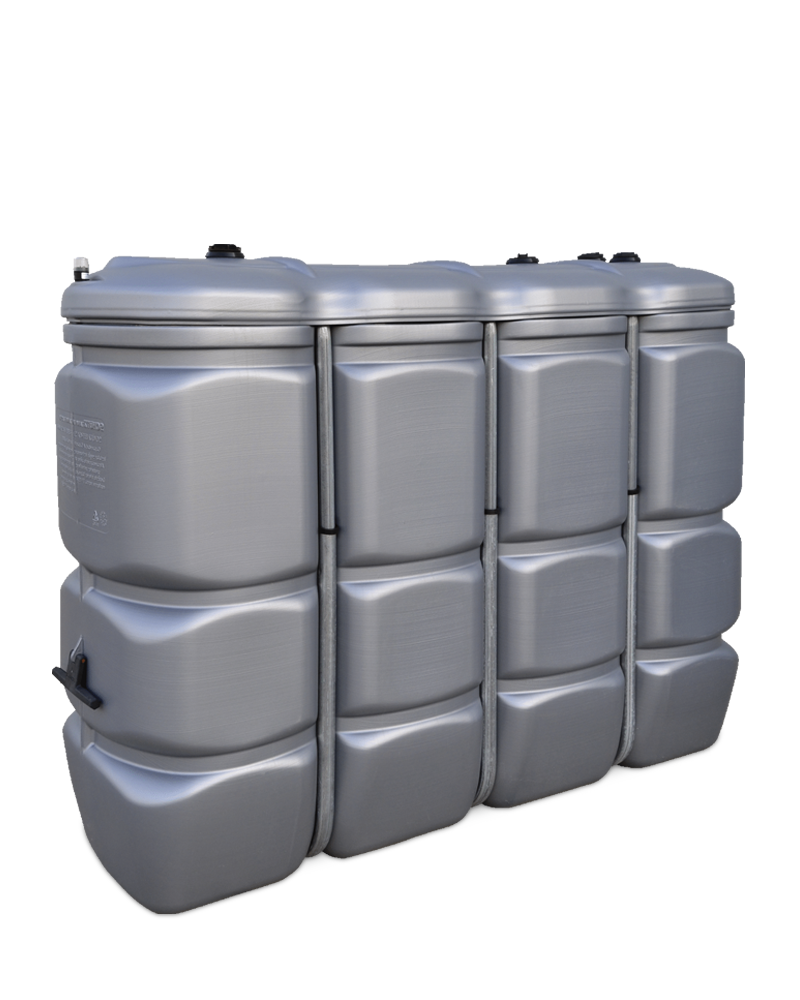

2,000 L

TANK IN TANK

Plastic

Product details2,000 L
Approval CE
DoP 89283/09-6
Length1,720 mm
Width770 mm
Height without piping1,700 mm
Height with piping1,850 mm
Weight103 kg
Article number4008865
add to watchlist
Product details2,000 L
Approval CE
DoP 89283/09-6
Length1,720 mm
Width770 mm
Height without piping1,700 mm
Height with piping1,850 mm
Weight103 kg
Article number4008865
add to watchlist

MODULAR

750 L Modular

TANK IN TANK

Plastic

Product details750 L Modular
Approval CE
DoP 99890/12
Approval DIBt
Z-40.21-371
Length750 mm
Width750 mm
Height without piping1,700 mm
Height with piping1,850 mm
Weight49 kg
Article number4019093
add to watchlist
Product details750 L Modular
Approval CE
DoP 99890/12
Approval DIBt
Z-40.21-371
Length750 mm
Width750 mm
Height without piping1,700 mm
Height with piping1,850 mm
Weight49 kg
Article number4019093
add to watchlist
1,000 L Modular

TANK IN TANK

Plastic

Product details1,000 L Modular
Approval CE
DoP 89283/09-18
Approval DIBt
Z-40.21-371
Length820 mm
Width840 mm
Height without piping1,965 mm
Height with piping2,115 mm
Weight58 kg
Article number4019603
add to watchlist
Product details1,000 L Modular
Approval CE
DoP 89283/09-18
Approval DIBt
Z-40.21-371
Length820 mm
Width840 mm
Height without piping1,965 mm
Height with piping2,115 mm
Weight58 kg
Article number4019603
add to watchlist
Product details750 L
Approval CE
DoP 89283/09-1
Length1,190 mm
Width660 mm
Height without piping1,450 mm
Height with piping1,600 mm
Weight46 kg
Article number4008325
add to watchlist
Product details1,000 L
Approval CE
DoP 89283/09-3
Length1,190 mm
Width770 mm
Height without piping1,700 mm
Height with piping1,850 mm
Weight61 kg
Article number4008321
add to watchlist
Product details1,500 L
Approval CE
DoP 89283/09-5
Length1,720 mm
Width770 mm
Height without piping1,700 mm
Height with piping1,850 mm
Weight103 kg
Article number4008326
add to watchlist
Product details2,000 L
Approval CE
DoP 89283/09-6
Length1,720 mm
Width770 mm
Height without piping1,700 mm
Height with piping1,850 mm
Weight103 kg
Article number4008865
add to watchlist
Product details750 L Modular
Approval CE
DoP 99890/12
Approval DIBt
Z-40.21-371
Length750 mm
Width750 mm
Height without piping1,700 mm
Height with piping1,850 mm
Weight49 kg
Article number4019093
add to watchlist
Product details1,000 L Modular
Approval CE
DoP 89283/09-18
Approval DIBt
Z-40.21-371
Length820 mm
Width840 mm
Height without piping1,965 mm
Height with piping2,115 mm
Weight58 kg
Article number4019603
add to watchlist
Datenblatt TANK IM TANK Kunststoff Spezial

750 l, 1.000 l

Download PDF
SCHÜTZ CATÁLOGO DEPÓSITOS DE GASOIL, AGUA Y DEPURACIÓN

LISTA DE PRECIOS

Download PDF
Ficha técnica TiT plástico PE-AD

750 l, 1.000 l, 1.500 l, 2.000 l

Download PDF
