THE SCHÜTZ MULTITANK – THE MULTI AMONG THE TANKS.

In industry, agriculture or private households, the SCHÜTZ MULTITANK offers the ideal solution for storage and disposal of heating oil or diesels.


The SCHÜTZ MULTITANK steel offers

  • Double-walled safety due to the corrosion-free inner tanks made of HDPE and a sturdy outer container made of galvanised steel.
  • Maximum storage volume with minimum spatial requirements
  • No oil odour due to SMP odour barrier
  • Easy setup without the need of a special room or collection pan (outside water conservation areas)
  • Suitable for storing bio-diesel, heating oil with biogenic additives and pure vegetable oil

Accessories

  1. Extraction pump, self-draining siphon pump with induction pipe and drain hose 700 l / 1.000 l - Art.-Nr. 4020392
  2. Optical leakage monitor as standard,
    700 l - Art.-Nr. 2051975
    1.000 l - Art.-Nr. 2051976
  3. Sheet steel outer container with 100% collection volume, hot-dip galvanised on both sides, seamed bottom and welded casing
  4. Carrier handles for easy handling
  5. Galvanised tubular frame for floor ventilation
  6. Content indicator as standard - Art.-Nr. 2029612
  7. Filler neck with 2" inside thread for connection to fuel nozzle
  8. Additional sockets, e.g. for installation of an overflow protection device
  9. Inner container in polyethylene with SMP odour barrier

Product Variants

200 L

Multitank

Product details
Approval
Diameter
585 mm
Hight without tubes882 mm
Hight with tubes
1,032 mm
Weight22 kg
Article number987700
add to watchlist
Product details
Approval
Diameter
585 mm
Hight without tubes882 mm
Hight with tubes
1,032 mm
Weight22 kg
Article number987700
add to watchlist

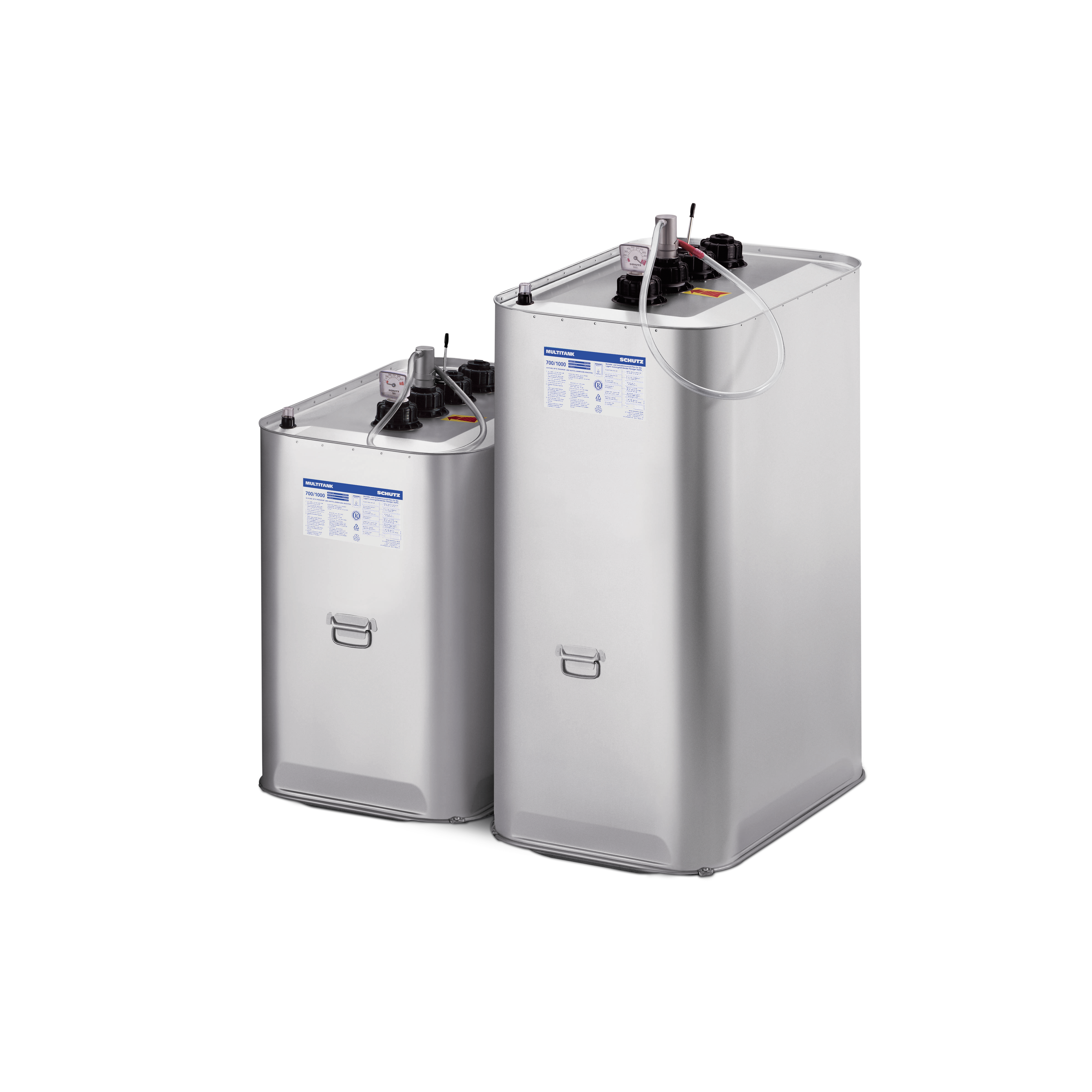

700 L

Multitank

Product details700 L
Approval CEDoP 96024/11-2
Approval DIBt
Z-40.21-133
Length1,135 mm
Width727 mm
Height 1,100 mm
Weightapprox. 62 kg
Article number4019463
add to watchlist
Product details700 L
Approval CEDoP 96024/11-2
Approval DIBt
Z-40.21-133
Length1,135 mm
Width727 mm
Height 1,100 mm
Weightapprox. 62 kg
Article number4019463
add to watchlist
1,000 L

Multitank

Product details1,000 L
Approval CEDoP 96024/11-1
Approval DIBt
Z-40.21-133
Length1,135 mm
Width727 mm
Height 1,540 mm
Weightapprox. 81 kg
Article number4019464
add to watchlist
Product details1,000 L
Approval CEDoP 96024/11-1
Approval DIBt
Z-40.21-133
Length1,135 mm
Width727 mm
Height 1,540 mm
Weightapprox. 81 kg
Article number4019464
add to watchlist
Product details
Approval
Diameter
585 mm
Hight without tubes882 mm
Hight with tubes
1,032 mm
Weight22 kg
Article number987700
add to watchlist
Product details700 L
Approval CEDoP 96024/11-2
Approval DIBt
Z-40.21-133
Length1,135 mm
Width727 mm
Height 1,100 mm
Weightapprox. 62 kg
Article number4019463
add to watchlist
Product details1,000 L
Approval CEDoP 96024/11-1
Approval DIBt
Z-40.21-133
Length1,135 mm
Width727 mm
Height 1,540 mm
Weightapprox. 81 kg
Article number4019464
add to watchlist
Datenblatt Multitank

700 l, 1.000 l

Download PDF
