SINGLE WALL TANKS, WITH OR WITHOUT STEEL REINFORCEMENTS – A SOLUTION FOR ALL SPACES AND BUDGETS.

Single wall tanks, with or without steel reinforcements. A solution for all spaces and budgets. Must be used with retention tray.


Modular tanks (MT)

without reinforcement, in-line, battery, L-shaped and corner. The most versatile of the single-walled tanks.

Battery tanks (BT)

with vertical or horizontal metal reinforcements.

Product Variants

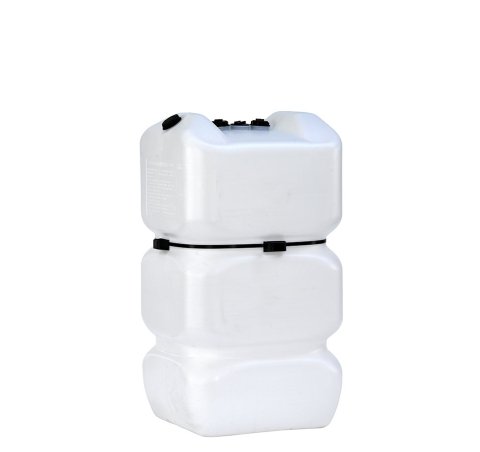

MT 600 L

MODULAR

Product details600 l
ApprovalDOP 89283/09-14
Length735 mm
Width
735 mm
Height without piping
1,347 mm
Height with piping1,425 mm
Weight
18 kg
Article number
732656
add to watchlist
Product details600 l
ApprovalDOP 89283/09-14
Length735 mm
Width
735 mm
Height without piping
1,347 mm
Height with piping1,425 mm
Weight
18 kg
Article number
732656
add to watchlist
MT 750 L

MODULAR

Product details750 l
ApprovalDOP 89283/09-15
Length735 mm
Width735 mm
Height without piping
1,653 mm
Height with piping1,730 mm
Weight22 kg
Article number
732672
add to watchlist
Product details750 l
ApprovalDOP 89283/09-15
Length735 mm
Width735 mm
Height without piping
1,653 mm
Height with piping1,730 mm
Weight22 kg
Article number
732672
add to watchlist
MT 1,000 l

MODULAR

Product details1,000 l
ApprovalDOP 89283/09-17
Length780 mm
Width780 mm
Height without piping
1,950 mm
Height with piping2,100 mm
Weight29 kg
Article number732680
add to watchlist
Product details1,000 l
ApprovalDOP 89283/09-17
Length780 mm
Width780 mm
Height without piping
1,950 mm
Height with piping2,100 mm
Weight29 kg
Article number732680
add to watchlist
Product details600 l
ApprovalDOP 89283/09-14
Length735 mm
Width
735 mm
Height without piping
1,347 mm
Height with piping1,425 mm
Weight
18 kg
Article number
732656
add to watchlist
Product details750 l
ApprovalDOP 89283/09-15
Length735 mm
Width735 mm
Height without piping
1,653 mm
Height with piping1,730 mm
Weight22 kg
Article number
732672
add to watchlist
Product details1,000 l
ApprovalDOP 89283/09-17
Length780 mm
Width780 mm
Height without piping
1,950 mm
Height with piping2,100 mm
Weight29 kg
Article number732680
add to watchlist

Product Variants

BT 750 L

BATTERY

Product details750 l
ApprovalDOP 89283/09-1
Length1,150 mm
Width620 mm
Height without piping
1,470 mm
Height with piping1,670 mm
Weight28 kg
Article number4027574
add to watchlist
Product details750 l
ApprovalDOP 89283/09-1
Length1,150 mm
Width620 mm
Height without piping
1,470 mm
Height with piping1,670 mm
Weight28 kg
Article number4027574
add to watchlist

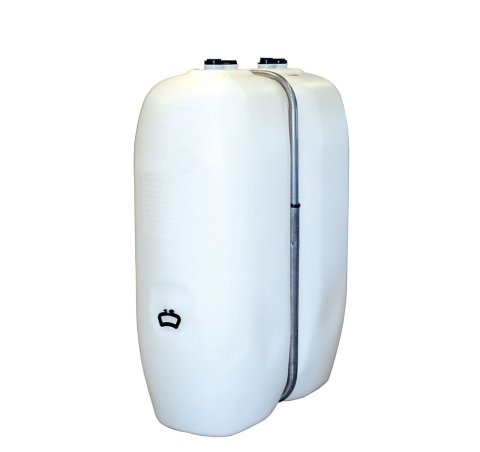

BT 1,000 l

BATTERY

Product details1,000 l
ApprovalDOP 89283/09-3
Length1,342 mm
Width620 mm
Height without piping
1,668 mm
Height with piping1,786 mm
Weight37 kg
Article number4042502
add to watchlist
Product details1,000 l
ApprovalDOP 89283/09-3
Length1,342 mm
Width620 mm
Height without piping
1,668 mm
Height with piping1,786 mm
Weight37 kg
Article number4042502
add to watchlist

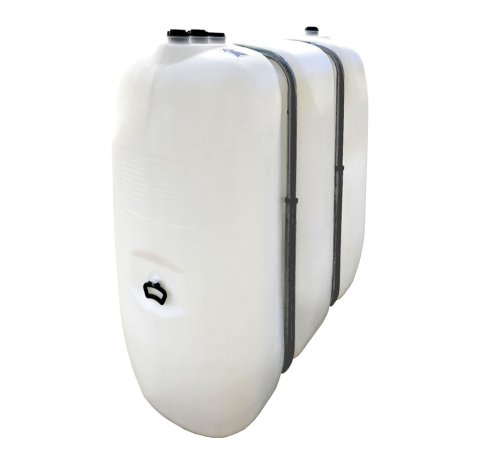

BT 1,600 l

BATTERY

Product details1,600 l
ApprovalDOP 89283/09-5
Length1,660 mm
Width730 mm
Height without piping
1,675 mm
Height with piping1,840 mm
Weight64 kg
Article number4042503
add to watchlist
Product details1,600 l
ApprovalDOP 89283/09-5
Length1,660 mm
Width730 mm
Height without piping
1,675 mm
Height with piping1,840 mm
Weight64 kg
Article number4042503
add to watchlist

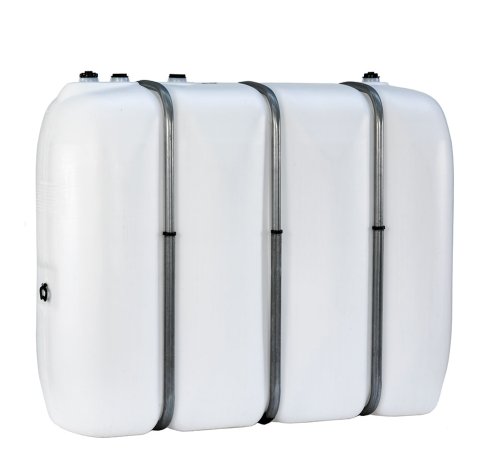

BT 2,000 L

BATTERY

Product details2,000 L
ApprovalDOP 89283/09-6
Length2,100 mm
Width730 mm
Height without piping
1,695 mm
Height with piping1,835 mm
Weight85 kg
Article number783641
add to watchlist
Product details2,000 L
ApprovalDOP 89283/09-6
Length2,100 mm
Width730 mm
Height without piping
1,695 mm
Height with piping1,835 mm
Weight85 kg
Article number783641
add to watchlist
Product details750 l
ApprovalDOP 89283/09-1
Length1,150 mm
Width620 mm
Height without piping
1,470 mm
Height with piping1,670 mm
Weight28 kg
Article number4027574
add to watchlist
Product details1,000 l
ApprovalDOP 89283/09-3
Length1,342 mm
Width620 mm
Height without piping
1,668 mm
Height with piping1,786 mm
Weight37 kg
Article number4042502
add to watchlist
Product details1,600 l
ApprovalDOP 89283/09-5
Length1,660 mm
Width730 mm
Height without piping
1,675 mm
Height with piping1,840 mm
Weight64 kg
Article number4042503
add to watchlist
Product details2,000 L
ApprovalDOP 89283/09-6
Length2,100 mm
Width730 mm
Height without piping
1,695 mm
Height with piping1,835 mm
Weight85 kg
Article number783641
add to watchlist
Ficha técnica SCHÜTZ Depósito modular

600 L, 750 L, 1.000 L

Download PDF
SCHÜTZ CATÁLOGO DEPÓSITOS DE GASOIL, AGUA Y DEPURACIÓN

LISTA DE PRECIOS

Download PDF
Ficha técnica SCHÜTZ Depósito de bateria

750 L, 1.000 L, 1.600 L, 2.000 L

Download PDF
