The design of this tank allows it to pass through any access point thanks to its reduced dimensions, thus offering a huge storage capacity in a minimum space.
The design of this tank allows it to pass through any access point thanks to its reduced dimensions, thus offering a huge storage capacity in a minimum space.
The AQUABLOCK BT is:
The Aquablock BT offers:
Ⓐ

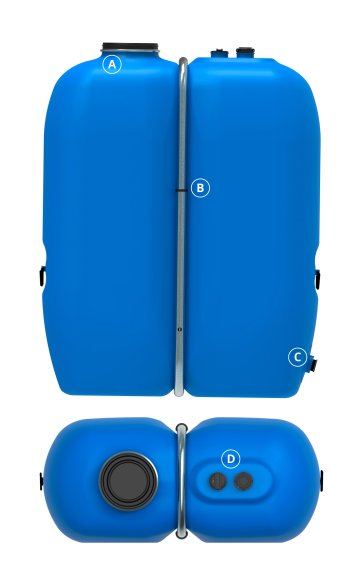

Opening of 250 mm with cap and clamp. The cap has two connection holes, one 2“ and the other ¾“, both with a plug.
Ⓑ
Reinforcing steel structure preventing deformation caused by water pressure
Ⓒ
Connection hole (inlet, outlet) internal thread S75 with adapter to 2“ and plug with external thread of 2“ with O-ring.
Ⓓ
2“ ventilation and inlet openings with their respective screw plugs.

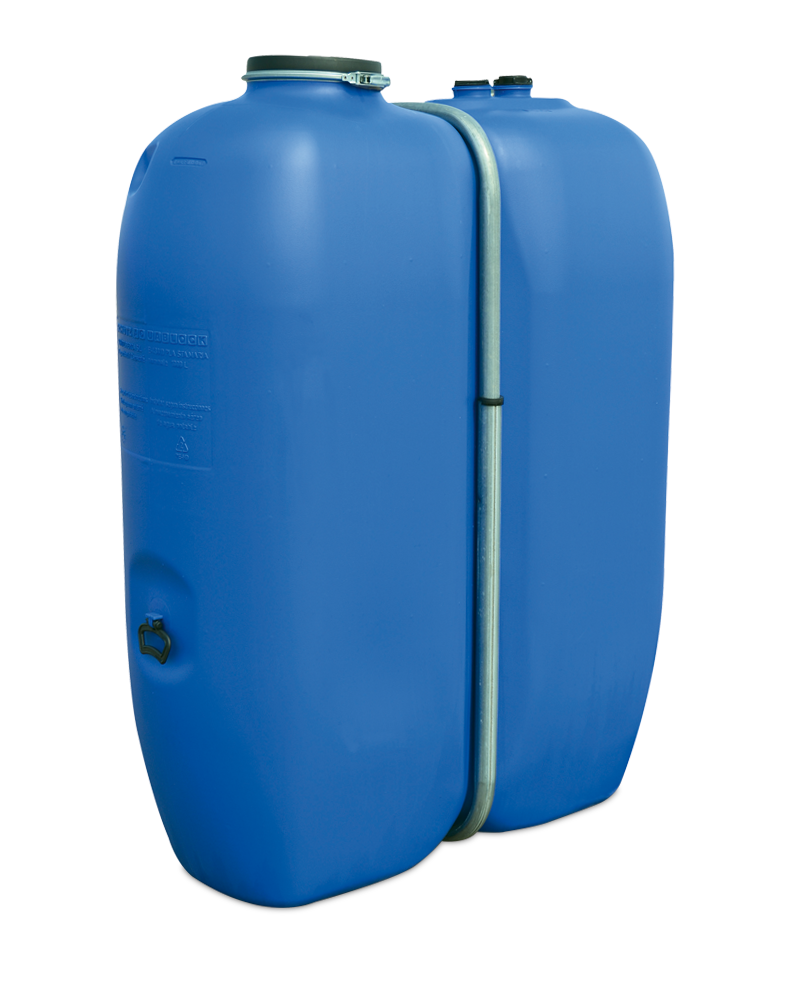

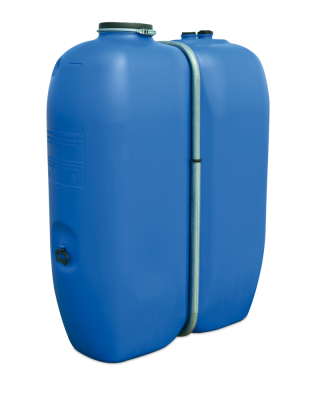

Aquablock BT
| Capacity | 1,000 litres |
| Length | 1,348 mm |
| Width | 640 mm |
| Height | 1,710 mm |
| Weight | 37 kg |
| Article number | 4002122 |
| Capacity | 1,000 litres |
| Length | 1,348 mm |
| Width | 640 mm |
| Height | 1,710 mm |
| Weight | 37 kg |
| Article number | 4002122 |
| Capacity | 1,000 litres |
| Length | 1,348 mm |
| Width | 640 mm |
| Height | 1,710 mm |
| Weight | 37 kg |
| Article number | 4002122 |
